- Hydro Instruments utilizes no-lead brass corporation ball valves certified to the requirements of NSF/ANSI 61 Annex F and G, and NSF/ANSI 372. – For PVC and CPVC corporation stops / chemical injection quills, all other wetted materials are plastic.
- Standard solution-wetted materials include PVC, CPVC. PVDF Kynar and 316 SS are available in limited sizes.
- Hydro Instruments offers customized solution tube lengths and inlet connections (upon request).
- For more information check the Product Downloads at the bottom of this page.
Corporation Stops / Chemical Injection Quills
Information & Features
Product Downloads
Sizes & Materials Offered
3/4″ Corporation Stops (CS-075-PVC)
- 3/4″ Corporation Stops
- No-lead brass corporation stop valve
- Various Connections & Diffuser Penetration Lengths Available
- 3/8″ Schedule 80 Solution Injection Tube
- Also Available in CPVC

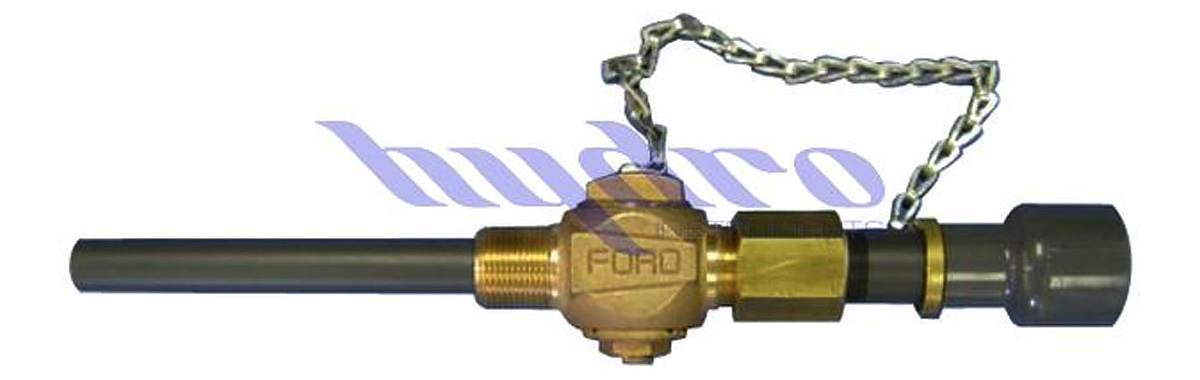

1″ Corporation Stops (CS-111-PVC)
- Solution wetted Parts PVC (Schedule 80)
- No-lead brass corporation stop valve
- Various Connections & Diffuser Penetration Lengths Available
- 1/2″ Schedule 80 Solution Injection Tube
- Also Available in CPVC, Stainless Steel, Kynar (PVDF) or Teflon (PTFE)
1-1/2″ Corporation Stops (CS-113-PVC)
- Solution wetted Parts PVC (Schedule 80)
- No-lead brass corporation stop valve
- Various Connections & Diffuser Penetration Lengths Available
- 1″ Schedule 80 Solution Injection Tube
- Also Available in CPVC & Stainless Steel
2″ Corporation Stops (CS-479-PVC)
- Solution wetted Parts PVC (Schedule 80)
- No-lead brass corporation stop valve
- Various Connections & Diffuser Penetration Lengths Available
- 1-1/2″ Schedule 80 Solution Injection Tube
- Also Available in CPVC

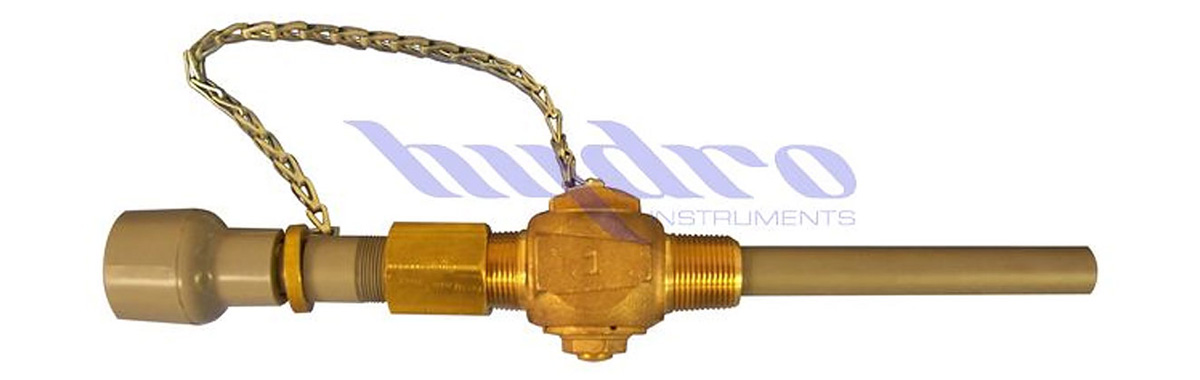

1″ CPVC Corporation Stop (CS-111-CPVC)
- Solution wetted Parts CPVC (Schedule 80)
- No-lead brass corporation stop valve
- Various Connections & Diffuser Penetration Lengths Available
- Available in 3/4″, 1″, 1-1/2″ or 2″ Sizes

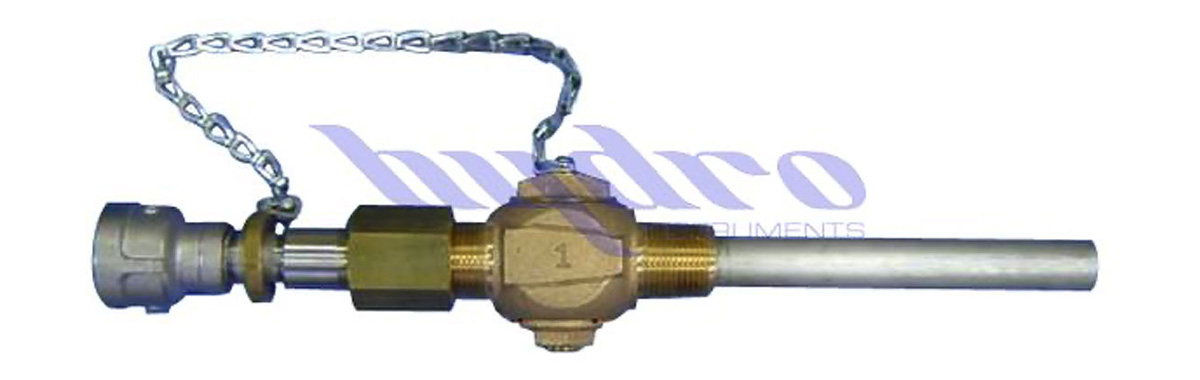

1″ Stainless Steel Corp Stop (CS-111-SS)
- Solution wetted Parts Stainless Steel
- No-lead brass corporation stop valve
- Various Diffuser Penetration Lengths Available
- Available in 1″ or 1-1/2″ Sizes
1/2″ Non-Metallic Corp Stops (CSP-050-PVC)
- All-Plastic Design
- Available in PVC or CPVC
- Ring & Capture Nut are PVDF (Kynar)
- Available in 1/2″, 3/4″, 1″, 1-1/4″ & 1-1/2″ Sizes
3/4″ Non-Metallic Corp Stops (CSP-075-PVC)
- All-Plastic Design
- Available in PVC or CPVC
- Ring, Sleeve & Capture Nut are PVDF (Kynar)
- Available in 1/2″, 3/4″, 1″, 1-1/4″ & 1-1/2″ Size
1″ Non-Metallic Corp Stop (CSP-111-PVC)
- All-Plastic Design
- Available in PVC, CPVC, Kynar (PVDF) or Teflon (PTFE)
- Ring, Sleeve & Capture Nut are PVDF (Kynar)
- Available in 1/2″, 3/4″, 1″, 1-1/4″ & 1-1/2″ Sizes
1-1/4″ Non-Metallic Corp Stop (CSP-125-PVC)
- All-Plastic Design
- Available in PVC or CPVC
- Ring, Sleeve & Capture Nut are PVDF (Kynar)
- Available in 1/2″, 3/4″, 1″, 1-1/4″ & 1-1/2″ Size

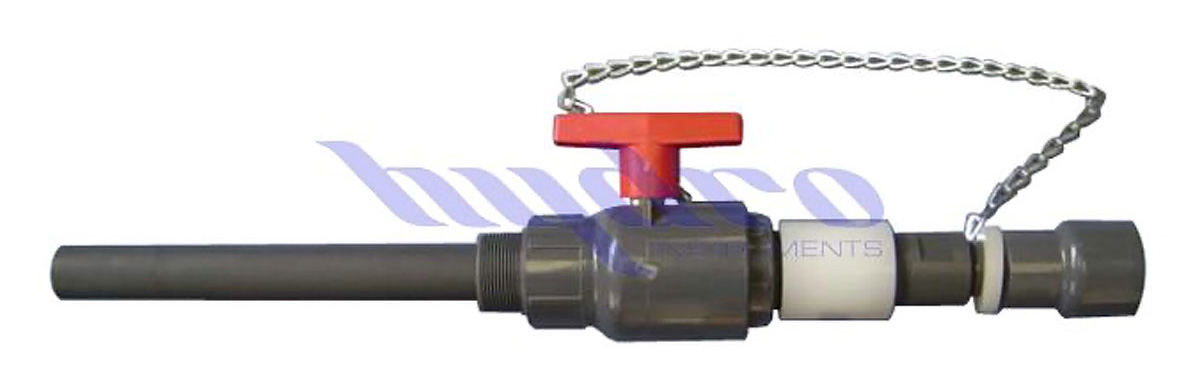

1-1/2″ Non-Metallic Corp Stop (CSP-113-PVC)
- All-Plastic Design
- Available in PVC or CPVC
- Ring, Sleeve & Capture Nut are PVDF (Kynar)
- Available in 1/2″, 3/4″, 1″, 1-1/4″ & 1-1/2″ Sizes
An Overview of Corporation Stops
Corporation stops are specialized valves used in water distribution systems to control the flow of water between the main water supply line and individual service lines. They’re commonly made from materials such as brass or bronze and are designed to be durable and resistant to corrosion — ensuring long-lasting performance even in harsh environments. Corporation stops are installed using a process called tapping, which involves creating a threaded connection on the main water line without interrupting the water flow. This allows for the seamless integration of new service lines or the replacement of old ones with minimal disruption to the overall system.
Corporation stops are available in various sizes and thread types to ensure that they are compatible with different pipe diameters. In addition to controlling water flow, they also serve as an important safety measure by providing a means to shut off the water supply to a specific property in the event of a leak or other emergency.
Read More
Why Corporation Stops Are Important
Corporation stops are vital components in water distribution systems, providing a multitude of benefits that ensure the safe and efficient delivery of water to residential, commercial, and industrial properties. One of the key advantages of corporation stops is their ability to control water flow between the main water supply line and individual service lines, enabling maintenance work, repairs, or replacements without interrupting the water supply for other users. This helps reduce disruptions and contributes to the overall reliability of the system.
Corporation stops also help prevent backflow and contamination of the main water supply, helping to protect its integrity. As a result, corporation stops play an indispensable role in modern water distribution networks by offering reliable connections, facilitating maintenance and repairs, and safeguarding the quality of the water supply.
Reach Out to Hydro Instruments Today
In order for our customers to acquire the best items available on the market, we are committed to producing accessories that are both intelligently designed while still being straightforward and simple to use. Additionally, our quick shipping guarantees that your item will arrive at your door on time so that you can incorporate it into your systems as soon as possible.
Interested in learning more about the other accessories we offer? Don’t hesitate to contact us today for further information.
