Injection Diffusers & Main Connects

Injection Diffusers & Main Connects (Quills)

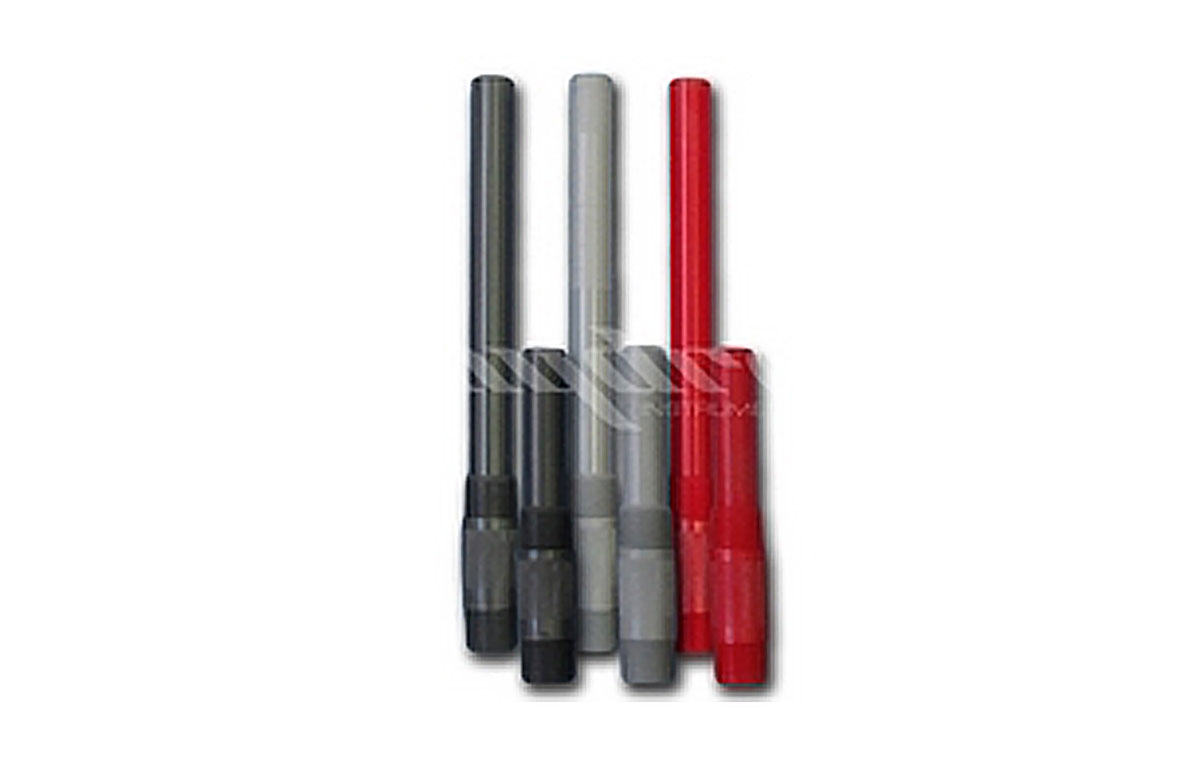

1/2″ Injection Quills

  • Main Connections: MNPT – 1/2″ x 1/2″
  • Insertion length(s): 2 1/2″ and 6″
  • For gas and liquid injection
  • Simple Installation
  • Available in PVC, CPVC, and PVDF Kynar (For custom materials please consult Hydro Instruments.)

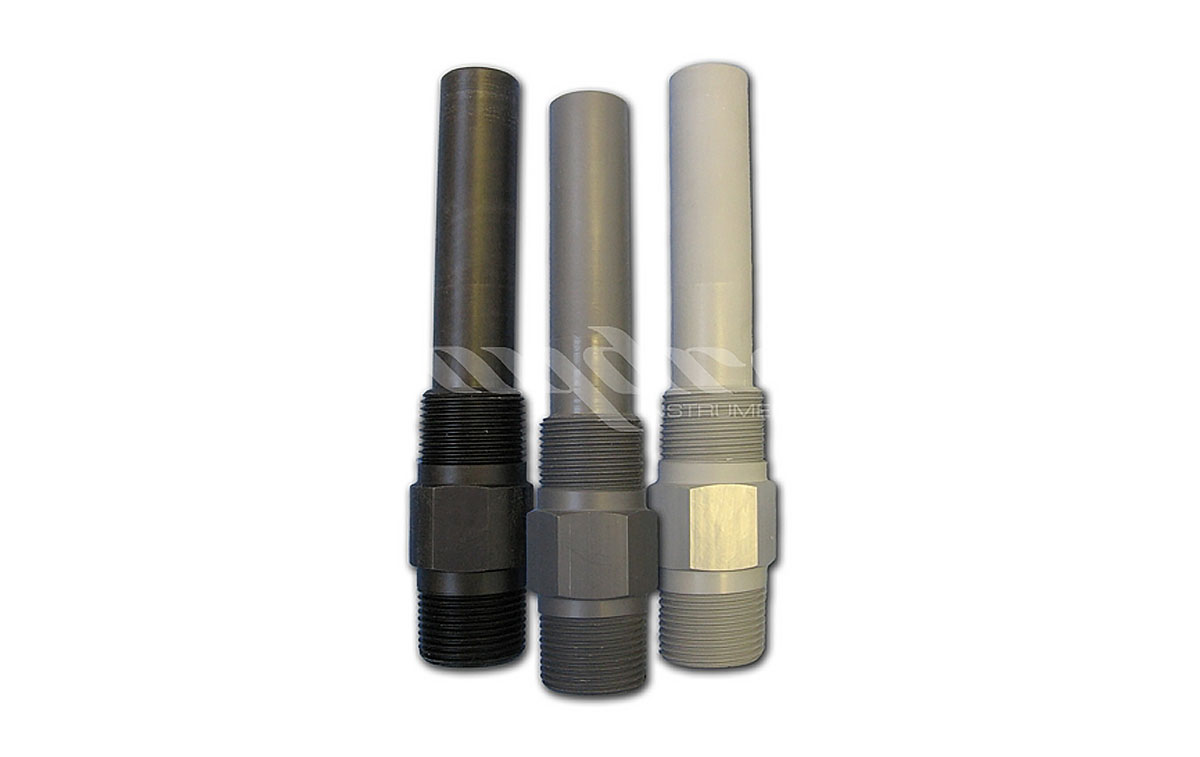

1″ Injection Quills

  • Main Connections: MNPT – 1″ x 1″
  • Insertion length: 4″
  • For gas and liquid injection
  • Simple Installation
  • Available in PVC, CPVC, and PVDF Kynar (For custom materials please consult Hydro Instruments.)

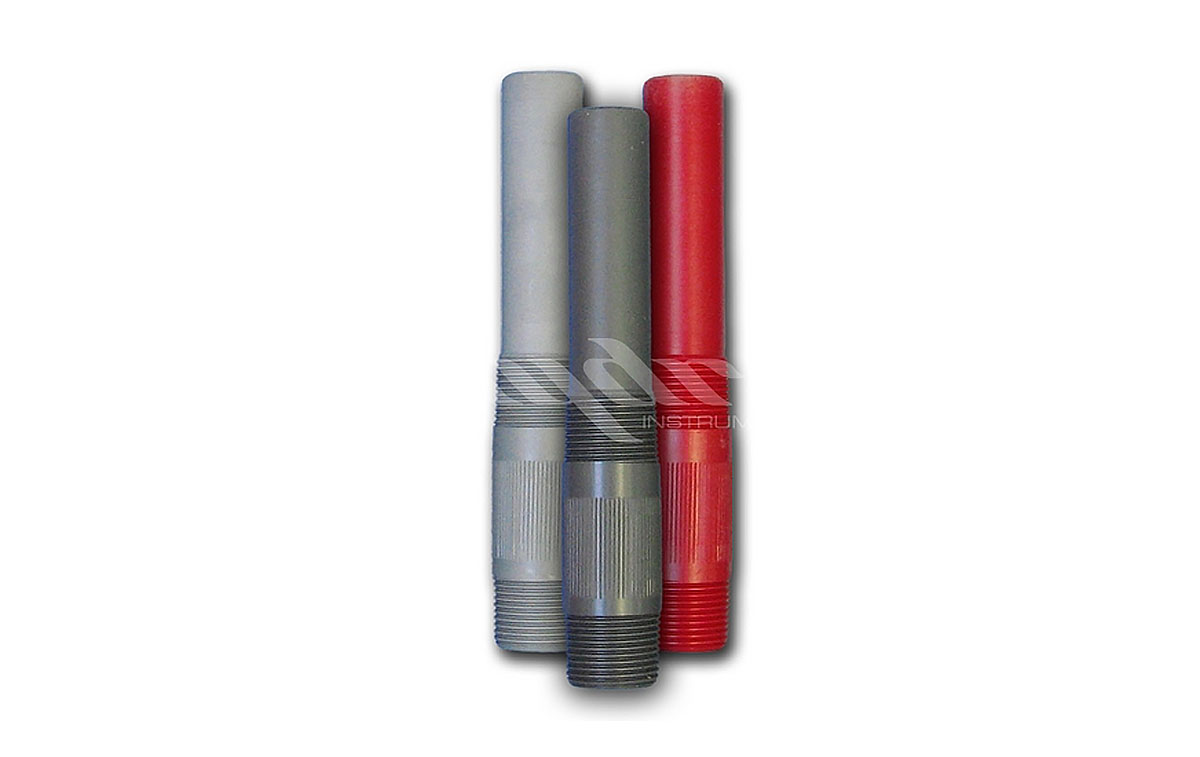

3/4″ Injection Quills

  • Main Connections: MNPT – 3/4″ x 3/4″
  • Insertion length(s): 3″ plus (9″ in PVC only)
  • For gas and liquid injection
  • Simple Installation
  • Available in PVC, CPVC, and PVDF Kynar (For custom materials please consult Hydro Instruments.)

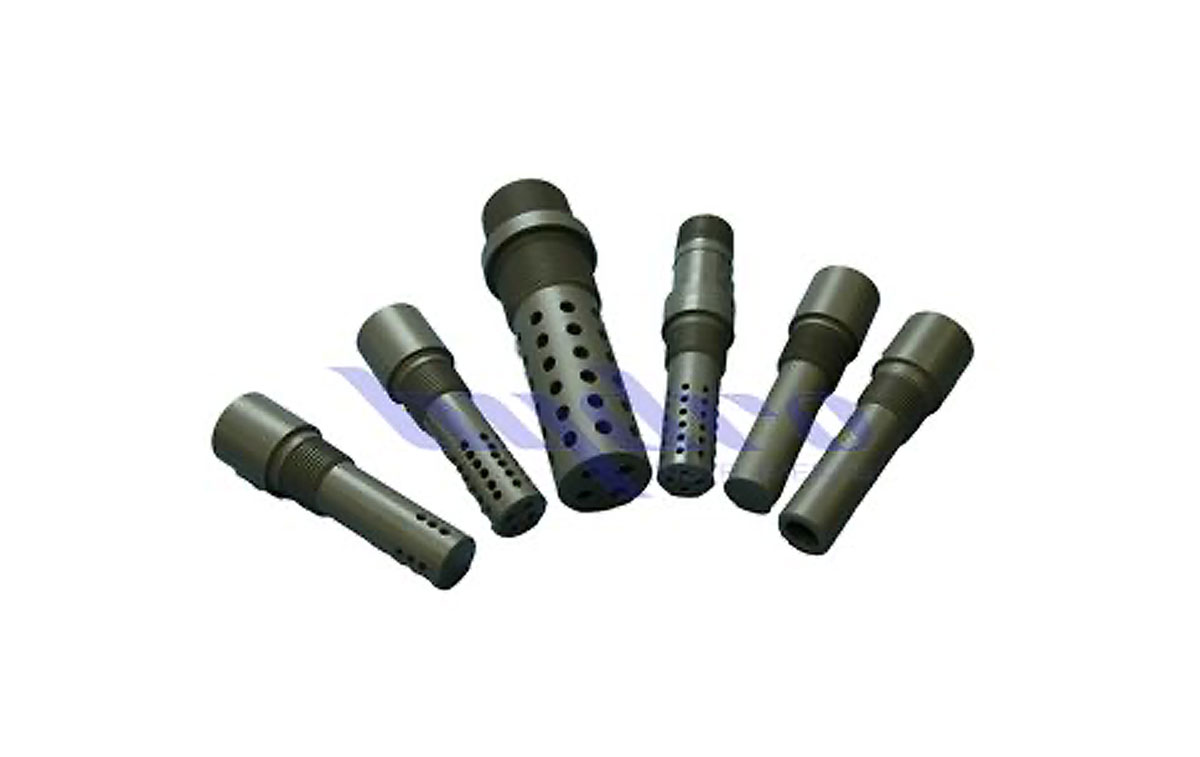

Spray Diffusers

  • 3/4″ and 1-1/4″ NPT Connections
  • Custom designs available
  • For effective mixing
  • Simple Installation
  • Standard Material is PVC
  • Custom materials may be available
