Chlorine, Sulfur Dioxide
- 250 pounds/day (5 kg/hr)
Ammonia
- 100 pounds/day (2000 gr/hr)

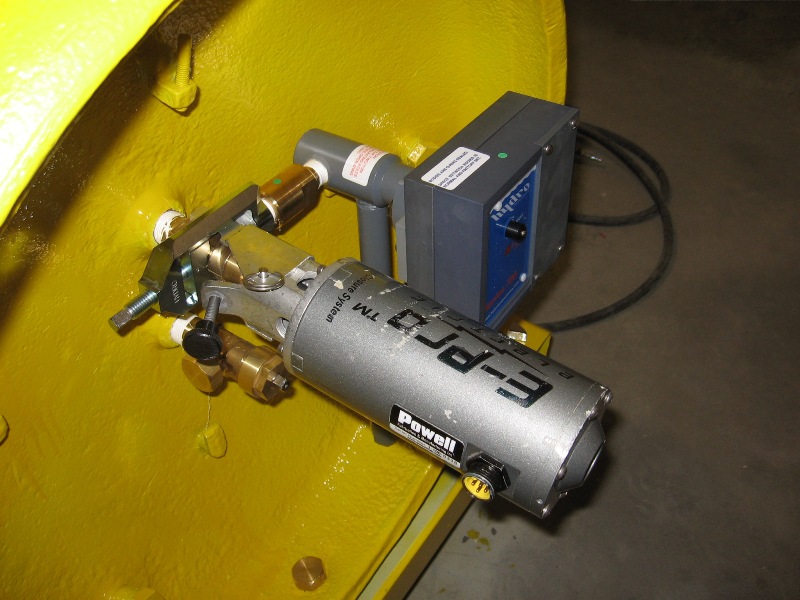

- Available with actuator mounting ton ironworks – compatible with all popular brands of emergency shutoff actuators (see related images below)
Chlorine Vacuum System Series 200 Gas Feed Equipment
Series 200 Gas Chlorine Vacuum System
& Equipment Cylinder, Manifold or Ton Mount
Series 200 Gas Chlorine Vacuum System
& Equipment Cylinder, Manifold or Ton Mount
Information & Features
Product Downloads
Related Images
Ton Mounting Vacuum Regulator
Ejector

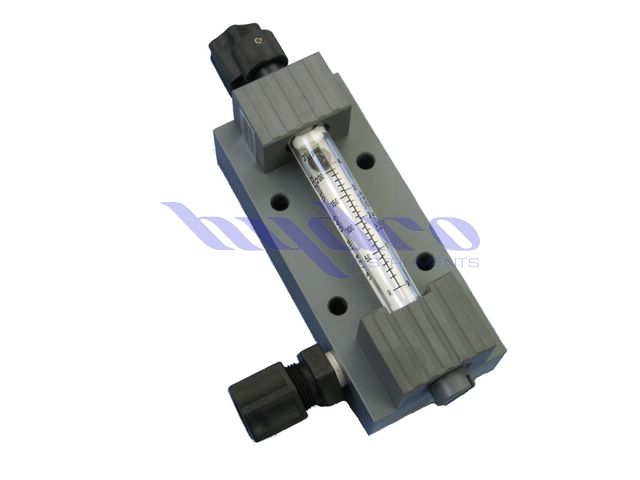

Remote Meter Panel
Switchover Module
Related Products

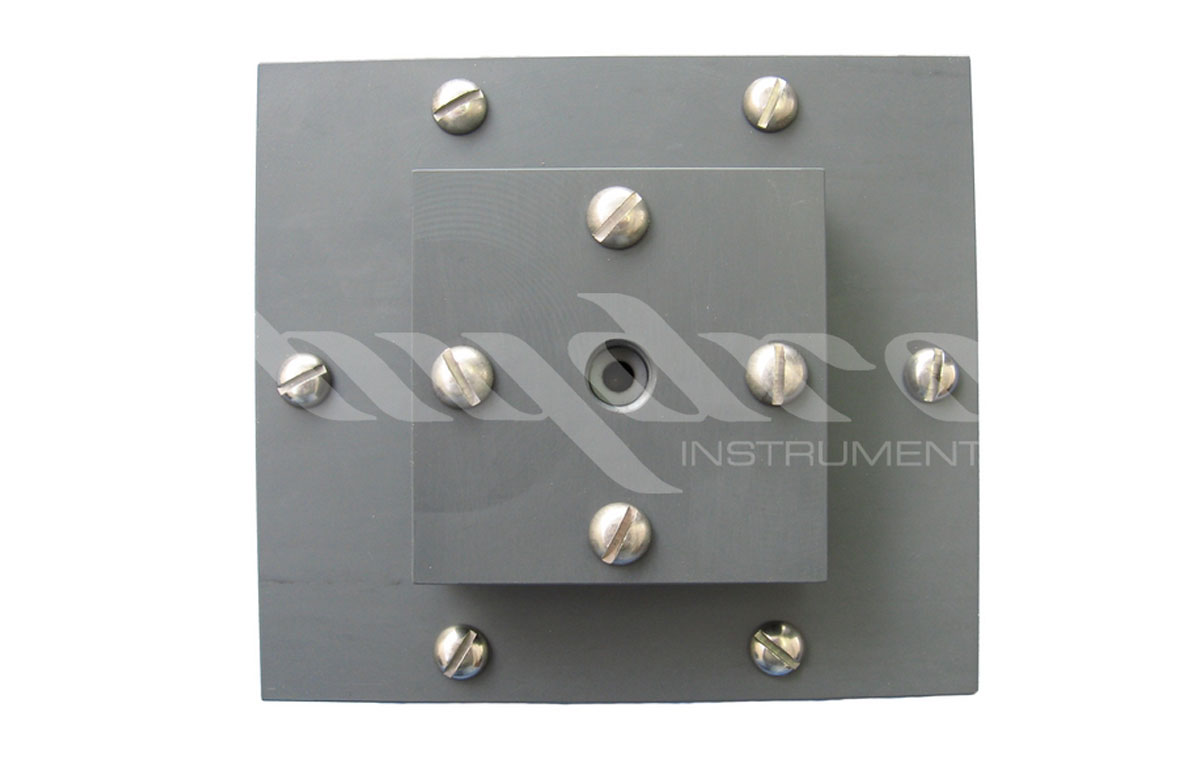

DP-500
Differential Pressure Regulators
Information & Features
- Capacities from 100 PPD (2 kg/h) to 500 PPD (10 kg/h)
- Available for Chlorine or Sulfur Dioxide Gas
Product Downloads
Series 200 Chlorine Vacuum Gas Feed System
No matter if a facility is treating potable water, disinfecting well systems, or supporting industrial processes, operators must rely on equipment that delivers accurate chemical feed rates without compromising system integrity or personnel safety. In fact, in these environments, fluctuations in chlorine delivery or system inefficiencies can quickly lead to compliance issues, operational disruptions, and increased maintenance demands.
The Series 200 chlorine vacuum gas feed system is specifically engineered to support consistent chlorine dosing while minimizing risks associated with pressurized gas systems. As a premier provider of advanced chlorination and chemical feed equipment, Hydro Instruments has designed a piece of equipment to be the industry benchmark for reliability in low-to-medium capacity gas feeding applications.
Speak to our team today about a customized quote for a Series 200 chlorine vacuum system.
How the Series 200 Gas Feed Equipment Operates

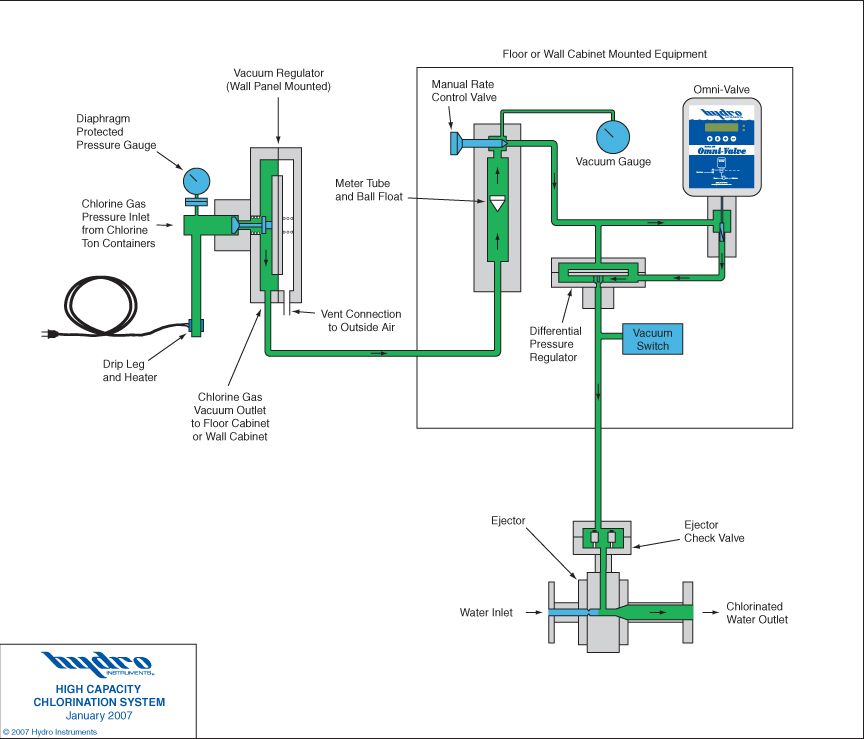

At the core of the Series 200 chlorinator is a vacuum regulator mounted directly to the chlorine supply container. Unlike pressure-fed systems that allow gas to flow continuously, this regulator ensures that chlorine gas is only released when a sufficient vacuum is present within the system. If a line break or system disruption occurs, the vacuum is immediately lost, and the regulator automatically shuts off the gas supply.
Once the vacuum regulator permits gas flow, chlorine is drawn into the metering assembly, where precise control is achieved through a calibrated flow meter and control valve. The Series 200 allows operators to accurately adjust feed rates to meet specific treatment requirements, even in systems with variable demand.
Water flowing through the injector creates a venturi effect, producing the vacuum that draws chlorine gas from the regulator through the metering system. This design eliminates the need for mechanical pumps or compressors, simplifying operation and reducing maintenance requirements. The injector also ensures efficient mixing of chlorine gas with the water stream for effective disinfection.
Ideal Applications for the Series 200 Chlorine Vacuum System
The Series 200 gas feeder is suitable for a wide range of smaller-scale and specialized applications where precise dosing and dependable performance are essential.
Smaller Municipal Systems
For small municipal water treatment facilities, the Series 200 chlorine feeder is an efficient and cost-effective solution, delivering reliable chlorine dosing without the complexity of larger systems. Its compact design and straightforward operation make it ideal for facilities with limited space or staffing resources.
Well Water Treatment
Private wells and small community water systems often require dependable chlorination to address bacteria, iron, sulfur, and other contaminants. The Series 200 chlorinator offers accurate and controlled chlorine delivery for effective treatment while preventing overfeeding.
Industrial Applications
Many industrial processes rely on chlorine for disinfection, oxidation, or chemical treatment. The Series 200 chlorine feeder is capable of supporting these applications with precise gas feed control. Its corrosion-resistant construction also ensures long-term performance, even in demanding industrial settings.
Key Advantages of the Series 200 Gas Feeder
The Series 200 chlorine vacuum gas feed system offers a range of advantages that make it a preferred choice for operators seeking efficiency, reliability, and ease of use.
- Compact and Efficient Design: The system’s compact design allows for easy installation in confined spaces without sacrificing performance.
- Reliable Performance: Engineered with high-quality components and tested for durability, the Series 200 delivers consistent chlorine dosing over extended periods. It can also be paired with safety equipment, such as the GA-180 gas alarm, to prevent future issues.
- Ease of Operation: The intuitive design of the Series 200 gas feeder simplifies system operation, allowing operators to easily monitor and adjust chlorine feed rates.
- Corrosion-Resistant Materials: Constructed from corrosion-resistant materials, the Series 200 is built to withstand the harsh conditions associated with chlorine handling. This durability extends the lifespan of the system and reduces the frequency of component replacement.
Our Other Gas Feed Systems
In addition to the Series 200 chlorinator, we offer a range of gas feeders, including our:
Request a Quote for a Series 200 Chlorine Feeder
Hydro Instruments has established a reputation for delivering high-quality chlorination equipment backed by technical expertise and dependable customer support. Our Series 200 gas feed equipment reflects this commitment, providing a reliable and efficient solution for precise chlorine dosing in a variety of applications.
With a readily available inventory and a knowledgeable team prepared to assist with system selection, installation guidance, and ongoing support, we will make sure you receive the right solution for your specific needs. To learn more about the Series 200 system or to request a quote, reach out today and enhance your water treatment operations!
