Vaporizers & System Accessories

Chlorine Vaporizers, Chlorine Evaporators & System Accessories

Information & Features

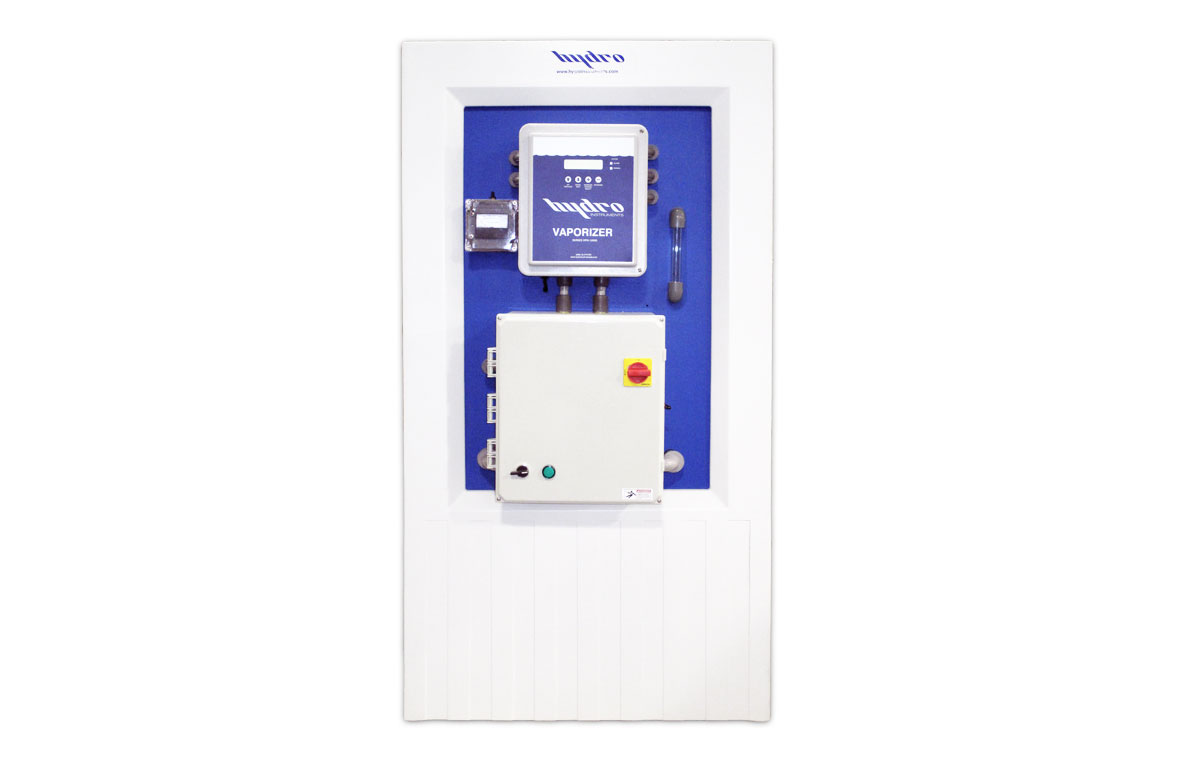

VPH-10000-1

  • Available Maximum Capacities:
    • 15,000 PPD (300 Kg/h) Cl2
    • 9,600 PPD (180 Kg/h) SO2
    • 3,000 PPD (60 Kg/h) NH3
  • ASME section VIII certified pressure chamber with “L” certification stamp for lethal gas requirement
  • Stainless steel water tank w/ 1.5″ drain valve
  • Automatic water level control
  • Cathodic corrosion protection system
  • SCR controlled heaters for maximum life and minimal energy consumption
  • Available Heaters:
    • 18 kW (Up to 10,000 PPD Cl2)
    • 20 kW (Up to 12,000 PPD Cl2)
    • 30 kW (Up to 15,000 PPD Cl2) for ver.1A
  • Utilizes recirculation pump for improved heat transfer efficiency
  • Electronic controller monitors vaporizer operation and superheat temperature
  • NEMA4X (IP66) rated controller
  • Usable with multiple Pressure Reducing Valve for Duty/Standby operation
  • MODBUS (RS485) communication
  • Profibus communication can optionally be supported
  • 4-20mA outputs
  • Alarm relays
Product Downloads
Information & Features

VPH-10000-2

  • Available Capacities:
    • 10,000 PPD (200 Kg/h) Cl2
    • 8,000 PPD (150 Kg/h) SO2
    • 2,500 PPD (50 Kg/h) NH3
  • ASME section VIII certified pressure chamber with “L” certification stamp for lethal gas requirement
  • Stainless steel water tank w/ 1.5″ drain valve
  • Automatic water level control
  • Cathodic corrosion protection system
  • SCR controlled heaters for maximum life and minimal energy consumption
  • Available Heaters:
    • 15 kW
    • 18 kW (Up to 10,000 PPD Cl2)
  • Does not require a water recirculating pump. Heater directly mounted water tank
  • Electronic controller monitors vaporizer operation and superheat temperature
  • NEMA4X (IP66) rated controller
  • Usable with multiple Pressure Reducing Valve for Duty/Standby operation
  • MODBUS (RS485) communication
  • Profibus communication can optionally be supported
  • 4-20mA outputs
  • Alarm relays
Product Downloads

System Accessories

Expansion Chamber Assembly

Expansion Chamber Assembly

  • ASME certified rupture disk and holder
  • Diaphragm protected pressure switch
  • DOT3AA 2015 -or- ASME certified expansion chamber
  • 1″ Sch.80 seamless carbon steel piping & forged fittings

Product Downloads

Pressure Relief Assembly

Pressure Relief Assembly

  • ASME certified rupture disk and holder
  • Diaphragm protected pressure switch
  • Pressure relief valve
  • 1″ Sch.80 seamless carbon steel piping & forged fittings

Product Downloads

PRV-71H
(Electrically Actuated)

PRV-71H Pressure Reducing Valve

  • For Chlorine, Sulfur Dioxide, Ammonia or Carbon Dioxide Gas
  • Feed rates up to 16,000 PPD (320 kg/h) Cl2 or SO2
  • Feed rates up to 8,000 PPD (160 Kg/h) NH3
  • Manual or electrically actuated
  • Electric actuators include a LED light to indicate open vs. close operation
  • Optional Wall Mounting Bracket
  • 120 or 240 VAC External Heater (included standard)
  • 3/4″ or 1″ FPT inlet/outlet connections
  • 1/4″ FPT vent connection
  • Bodies are Nickle plated Carbon Steel

Product Downloads
