Manifolds & Pressurized Gas Accessories

Chlorine Manifolds & Pressurized Gas Accessories

Pressure Reducing Valve

Information & Features

  • For Chlorine, Sulfur Dioxide, Ammonia or Carbon Dioxide Gas
  • Feed rates up to 16,000 PPD (320 Kg/h) Cl2 or SO2
  • Feed rates up to 8,000 PPD (160 Kg/h) NH3
  • Manual or electrically actuated
  • Electric actuators include an LED light to indicate open vs. close operation
  • Optional Wall Mounting Bracket
  • 120 or 240 VAC External Heater (included standard)
  • 3/4″ or 1″ FPT inlet/outlet connections
  • 1/4″ FPT vent connection
  • Bodies are Nickle plated Carbon Steel

Product Downloads

Vertical & Horizontal Manifolds

Information & Features

  • For Chlorine or Sulfur Dioxide Gas
  • Drip Leg Heater and Wall Mounting Hardware Included
  • Available for 1 – 4 Connections (Standard)
  • Custom Manifolds are Available

Product Downloads

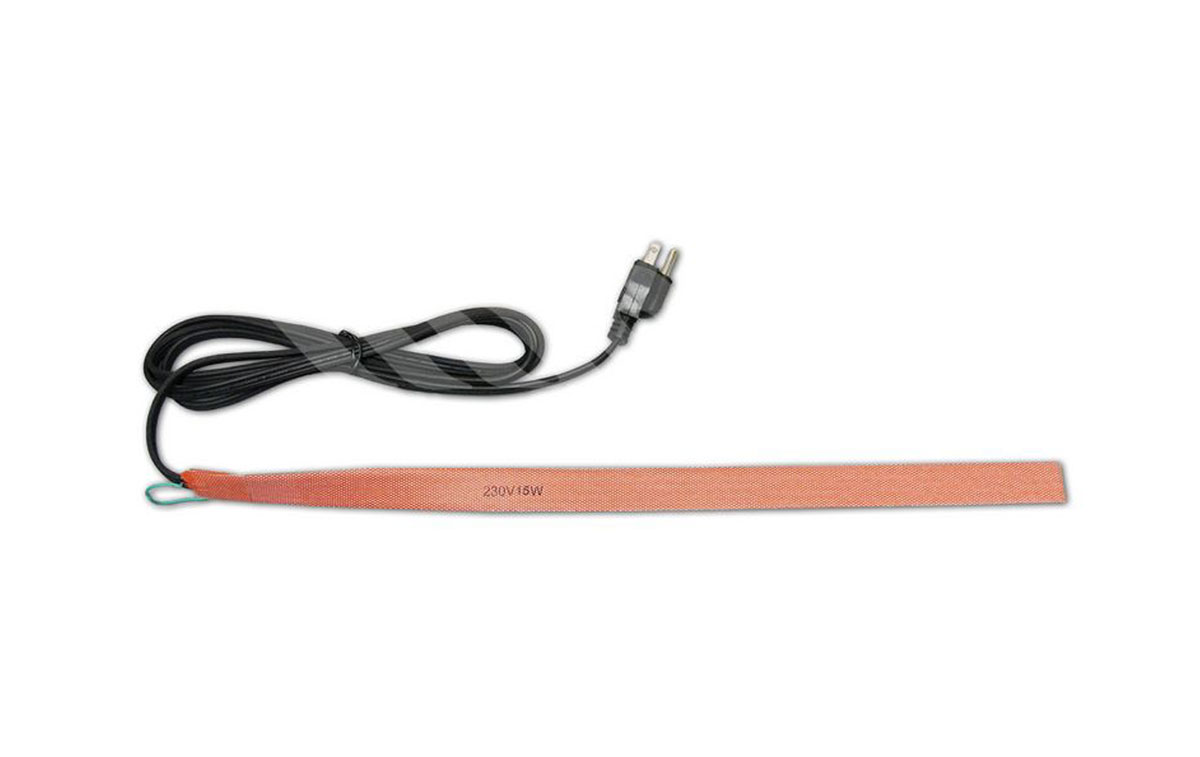

HTS-050-230 or HTS-100-230

Manifold (Strip) Heaters

Information & Features

  • Elevates pressure manifold temperature to evaporate liquid chlorine
  • 50cm and 100cm lengths available
  • 6 ft Power Cord Included
  • 230VAC

Product Downloads

HTH-111-115, HTH-111-230 or HTH-111-024

Drip Leg Heaters (Pre-Curled)

Information & Features

  • Evaproates Slugs of Liquid CL2 or SO2 in Drip Legs
  • 6 ft Power Cord Included
  • 115VAC, 230VAC or 24VDC Available

Product Downloads

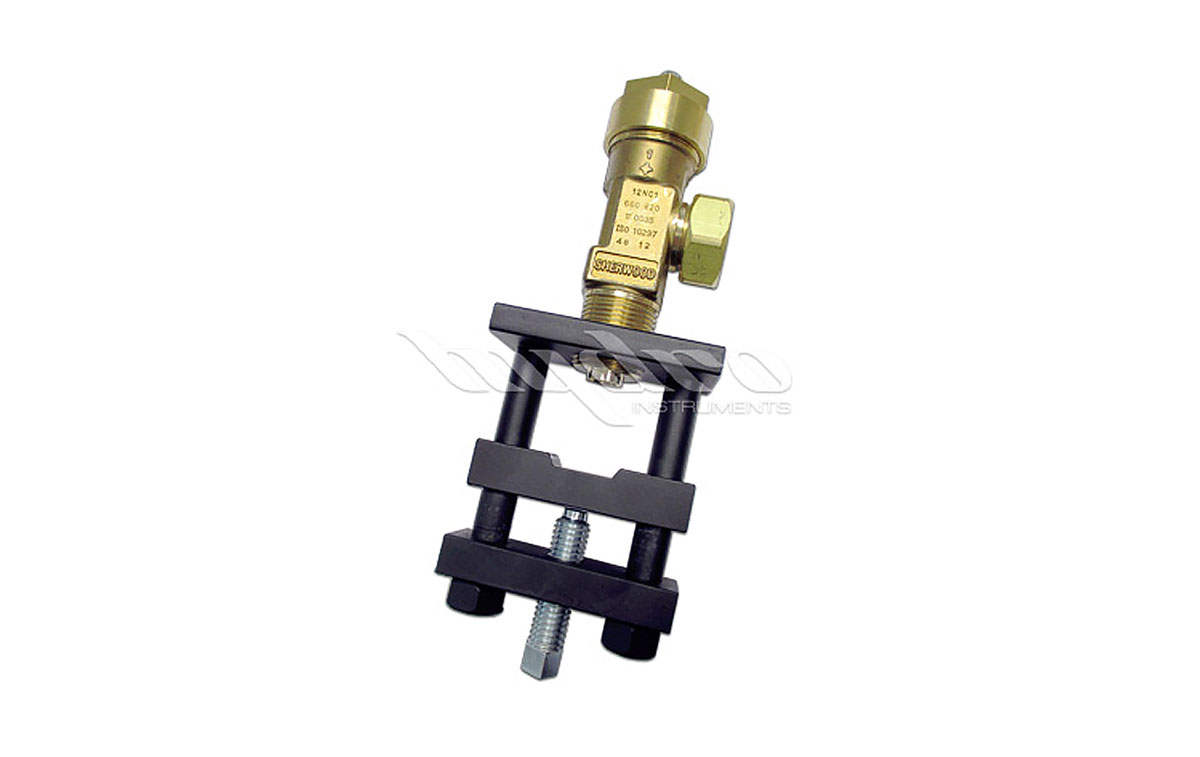

Isolation Valve Assembly (IVH-100-500)

Information & Features

  • For Chlorine or Sulfur Dioxide Gas
  • Protects Cylinder or Header Valves
  • Field Proven Yoke Design
  • Epoxy Powder Coated for Maximum Corrosion Resistance

Product Downloads

A-345

Flex Connector Adapter

Information & Features

  • For Chlorine or Sulfur Dioxide Gas
  • 3/4″ Male NPT x Flex Connection
  • Outlet threads are 1.030-14 NGO (CGA-660)

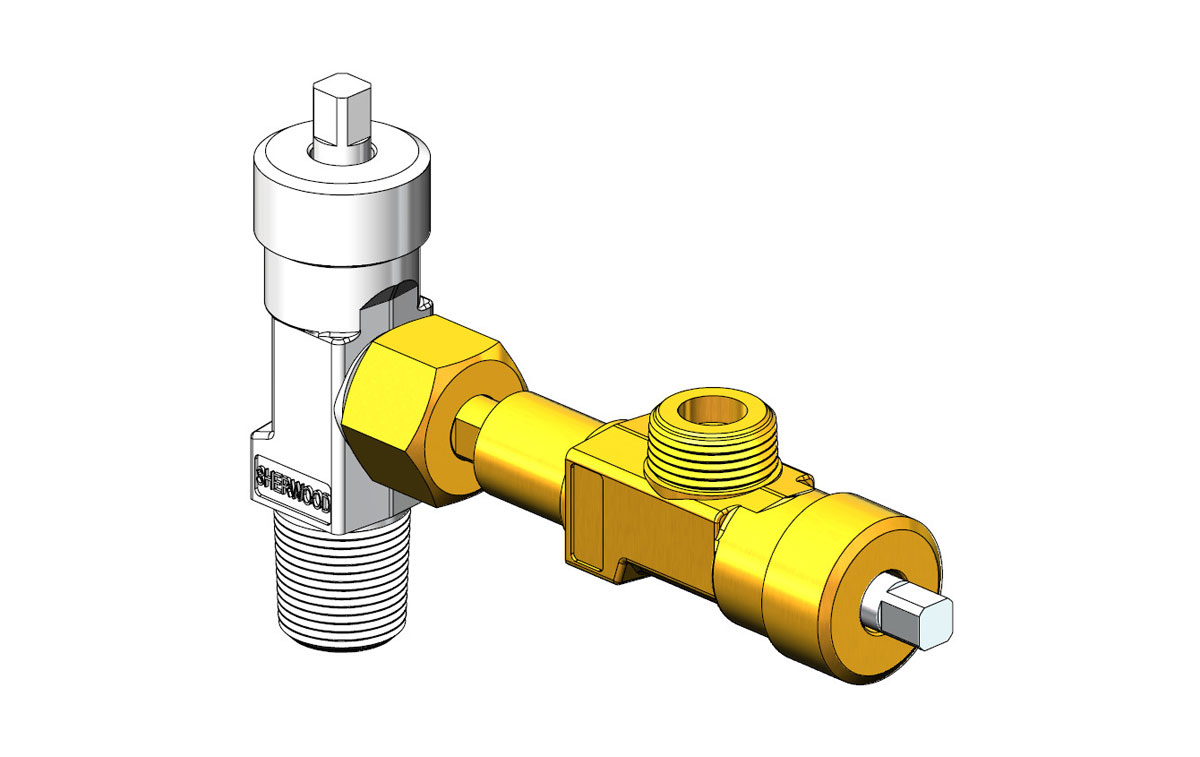

IVH-200-500

Isolation Valve Assembly (IVH-200-500)

Information & Features

  • For Chlorine or Sulfur Dioxide Gas
  • Protects Cylinder or Header valves
  • Available with CGA #660 or BSW threads

Product Downloads

IV-810

Isolation Valve Assembly (IV-810)

Information & Features

  • For Chlorine or Sulfur Dioxide Gas
  • Protects Cylinder or Header valves

Product Downloads

Isolation Valve Assembly (IV-830)

Information & Features

  • For Chlorine or Sulfur Dioxide Gas
  • Protects Cylinder or Header valves
  • Isolation valve assembly with closed yoke design

Product Downloads

IV-1A

Ammonia Isolation Valve Assembly

Information & Features

  • For Ammonia Gas (NH3)
  • 303 Stainless cylinder valve
  • Closed yoke with integrated seal adapter

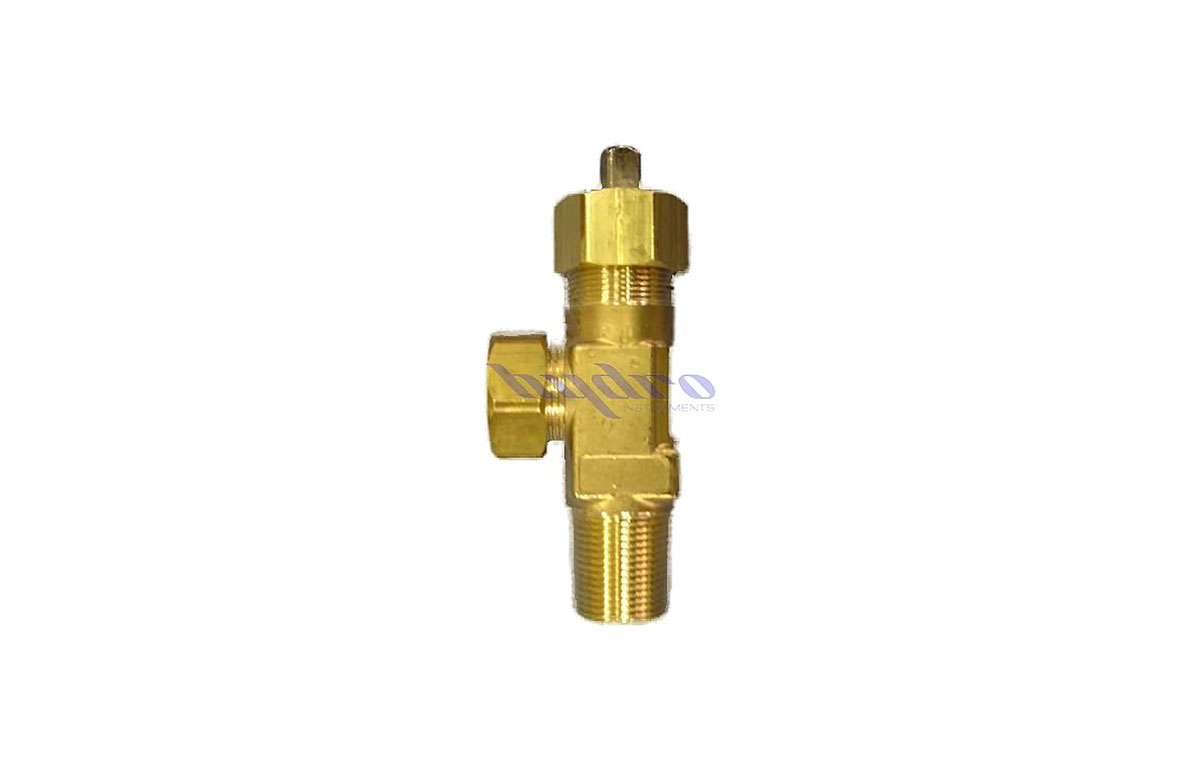

MV-1

Header (Cylinder) Valves

Information & Features

  • For Chlorine or Sulfur Dioxide Gas

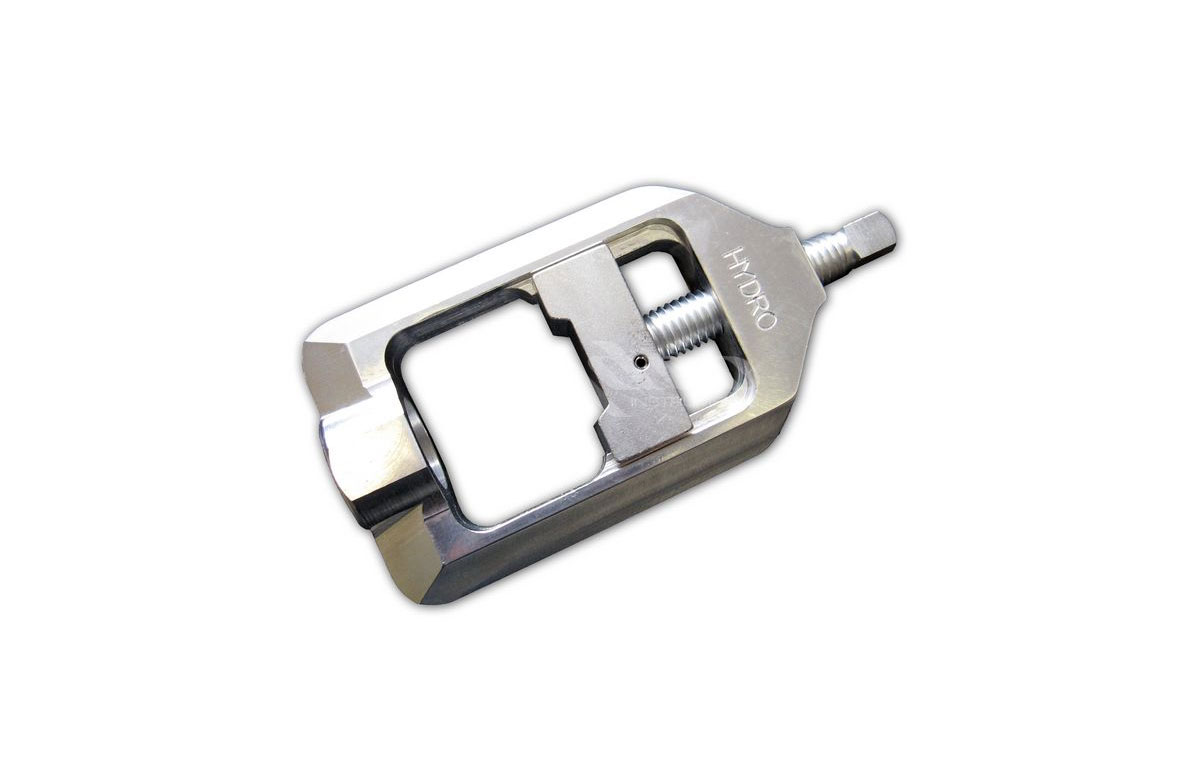

YAH-705

Closed Yoke Assembly

  • Closed yoke assembly (machined)

YAH-1006

Closed Yoke Adapter

  • For use with the YAH-705 closed yoke
  • 1/2″ MNPT

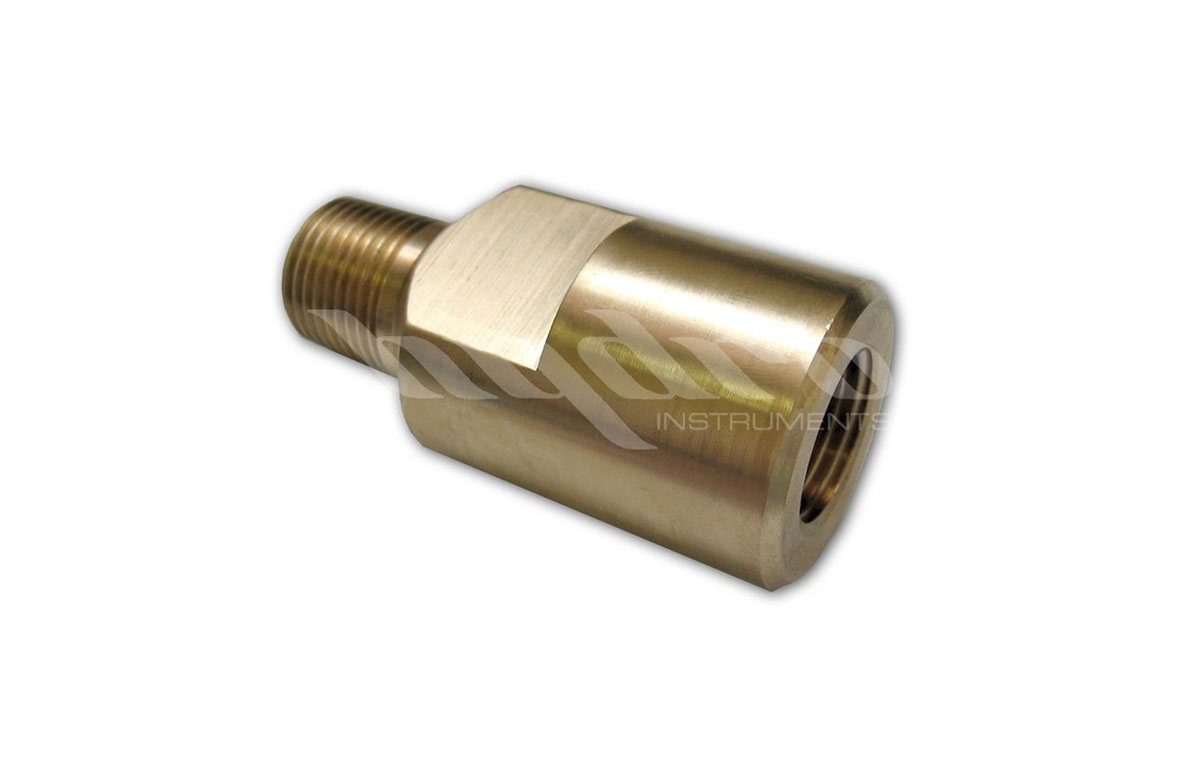

YAH-318

Extender

  • 1/2″ FNPT to 1/2″ MNPT Extender

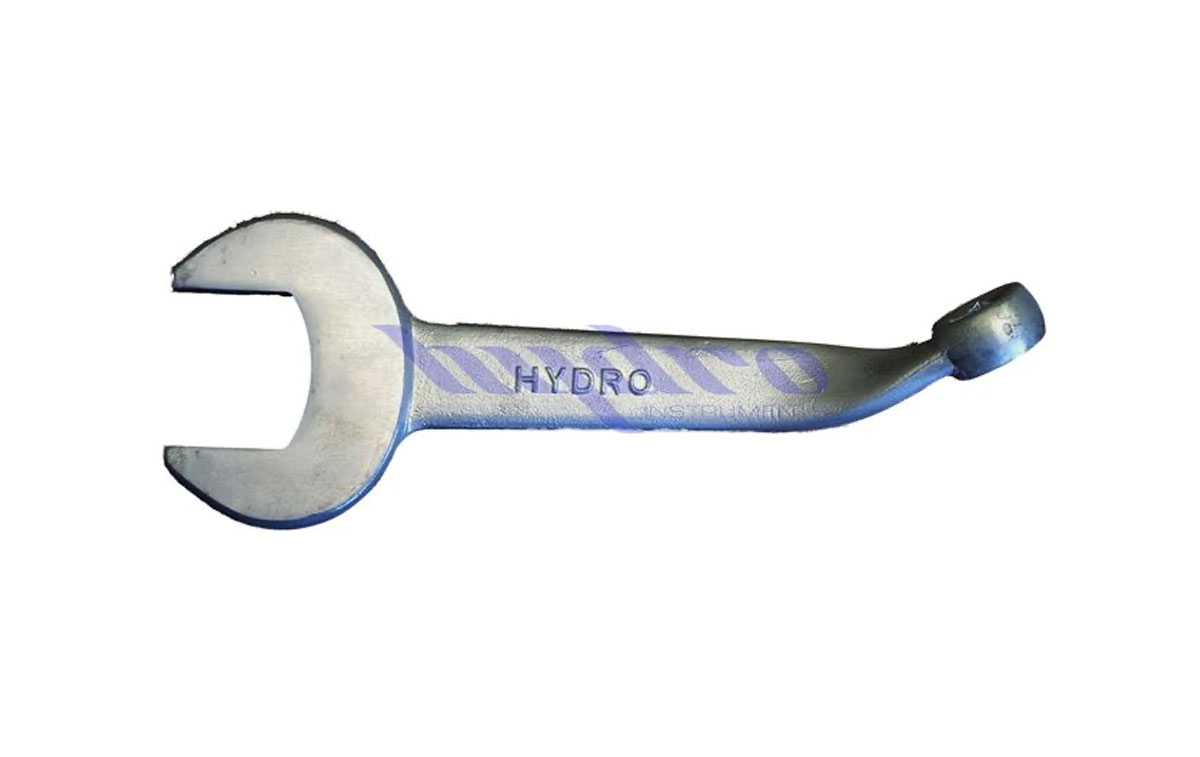

635H

Twisted Cylinder Wrench

Information & Features

  • Open End Fits Valve Packing Nut & Cap
  • Closed End Fits Stem and Hydro Yoke Half-Dog Bolts

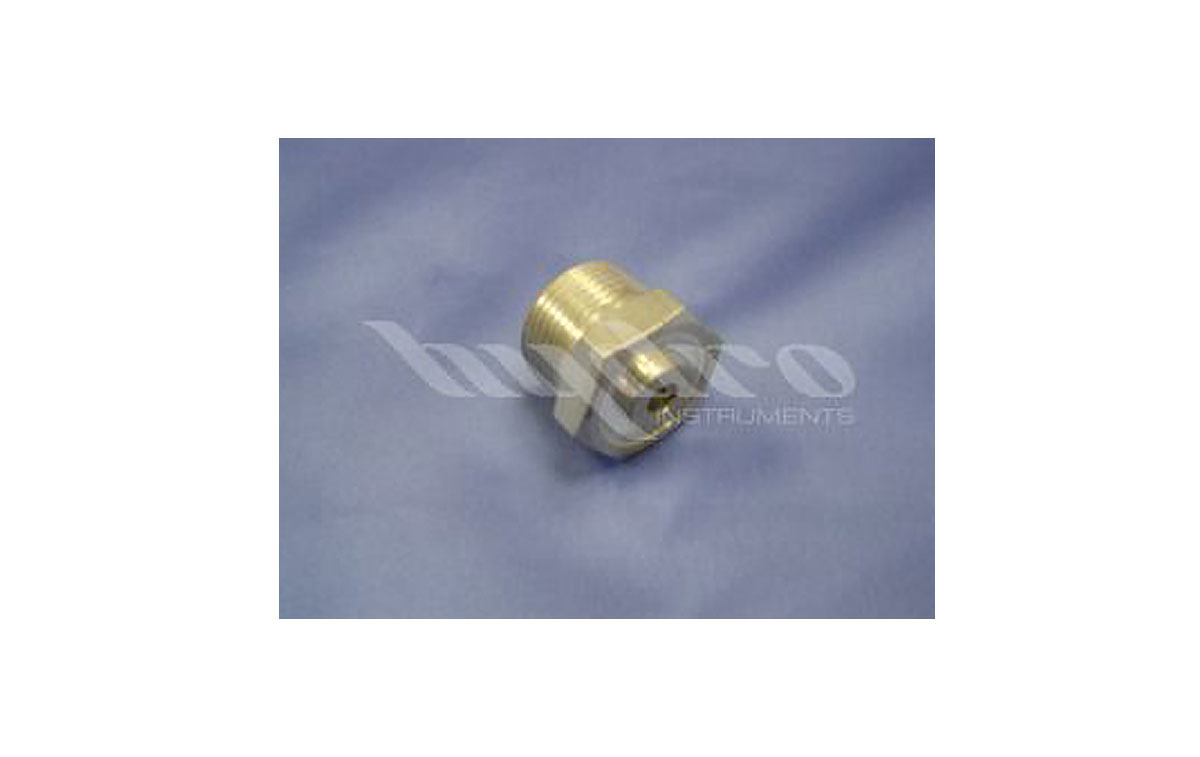

VRH-740-500

Universal Inlet Adapter

Information & Features

  • For Chlorine or Sulfur Dioxide Gas
  • Excellent Chemical Resistance
  • 3/4″ MNPT threads

FX-06

Flexible Connectors

Information & Features

  • For Chlorine or Sulfur Dioxide Gas
  • 4, 6, 10 and 16 ft Lengths Available

Product Downloads

Y-628

Open Yoke

5888-E

Split Yoke Adapter

Information & Features

  • Connects Open Yoke to Flexible Connectors
  • Outlet threads are 1.030-14 NGO (CGA-660)

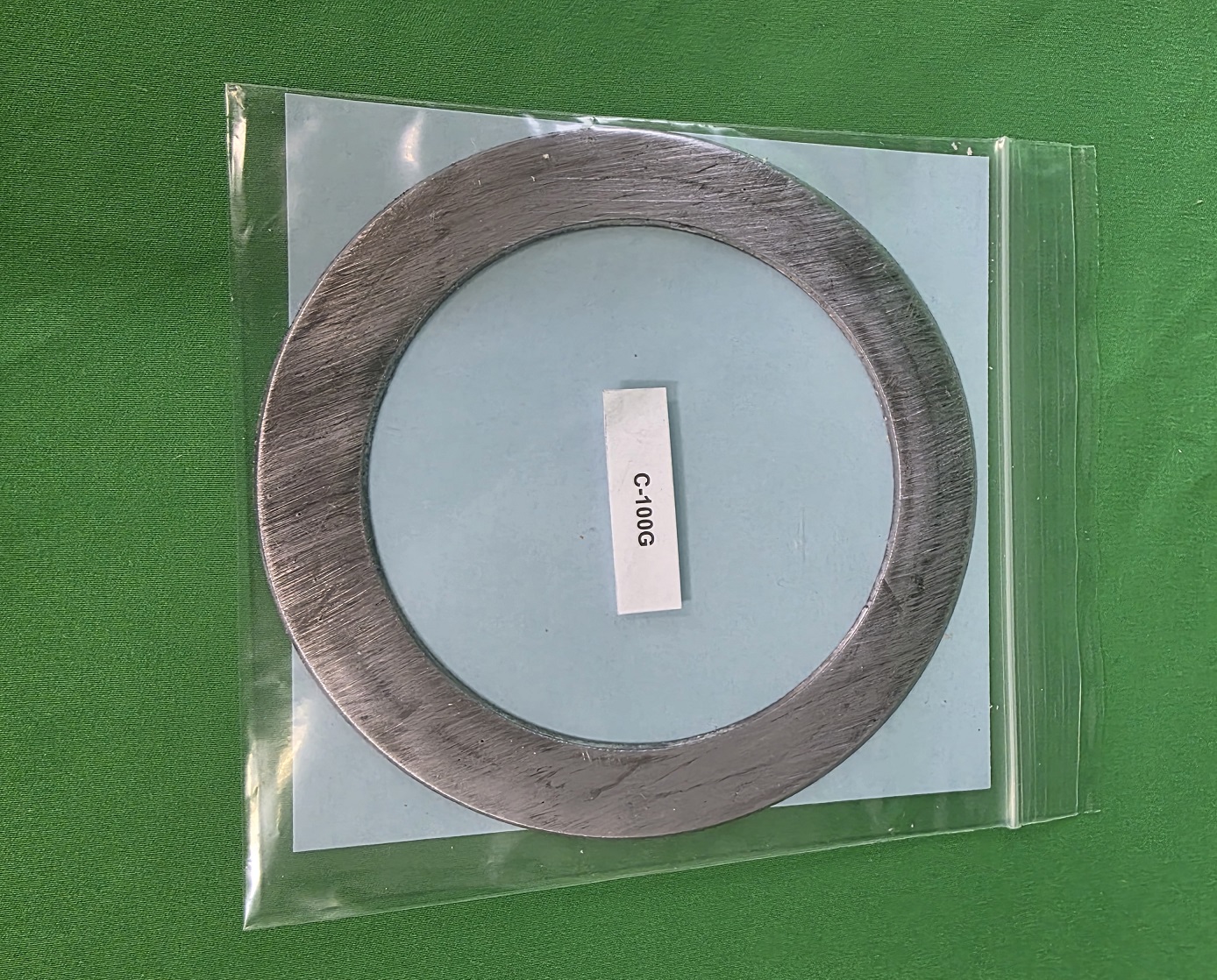

GAH-LED-11T, LG-332, LG-100, GH-LED-111, G-152

Lead Gaskets

Information & Features

  • Various Thicknesses Available

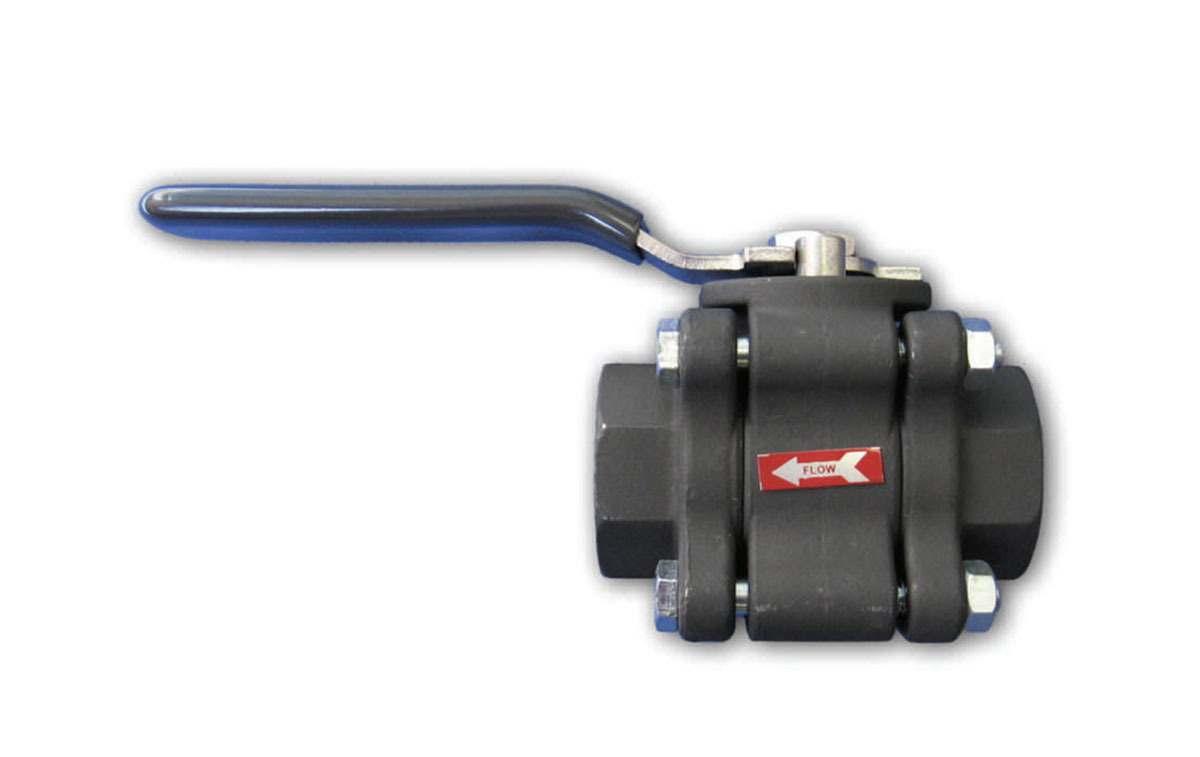

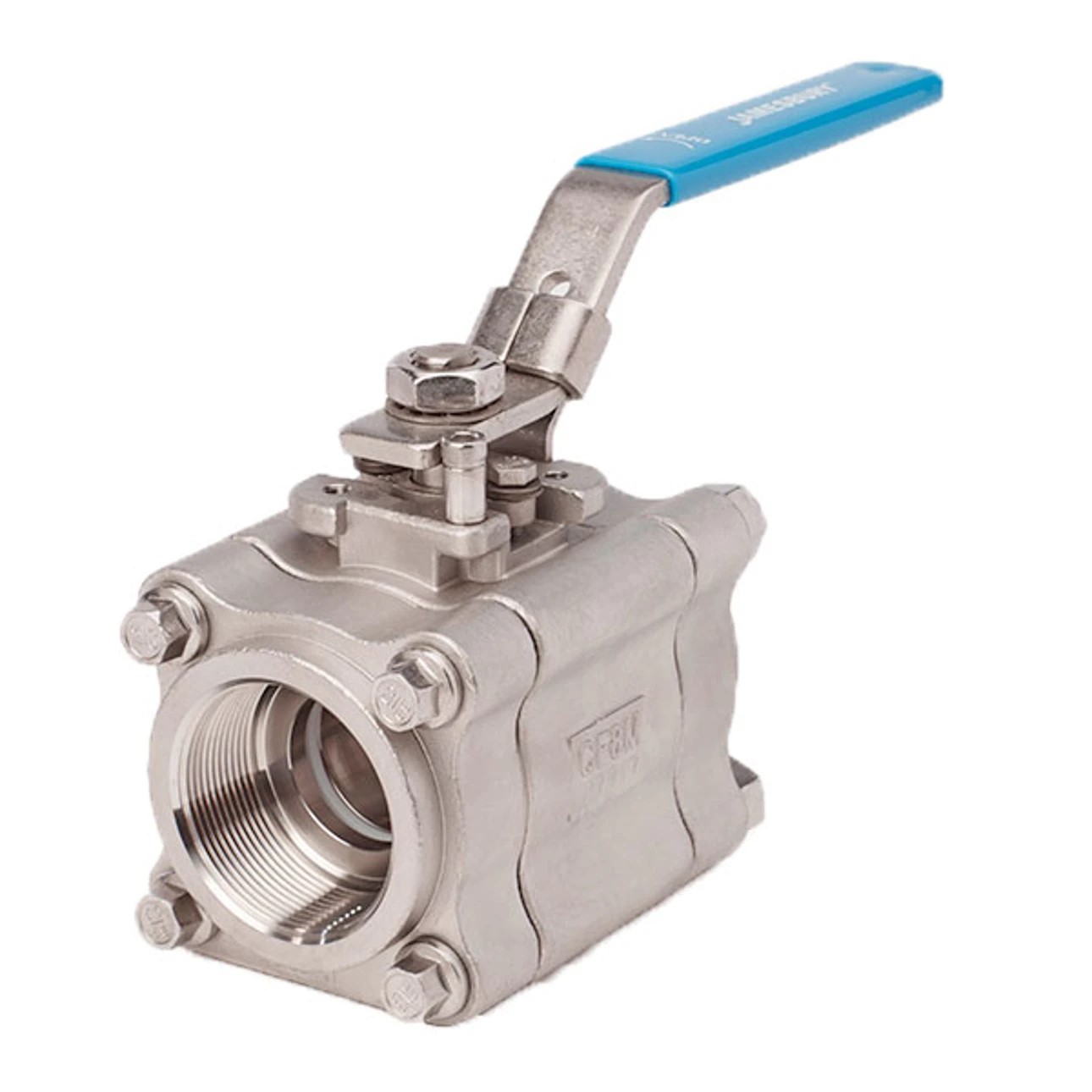

CBV-M-3/4NPT

Chlorine Ball Valves

Information & Features

  • Available in 3/4″ and 1″ NPT
  • Monel -or- Hasteloy C-276 Ball and Stem Material
  • Available with electronic actuators

Product Downloads

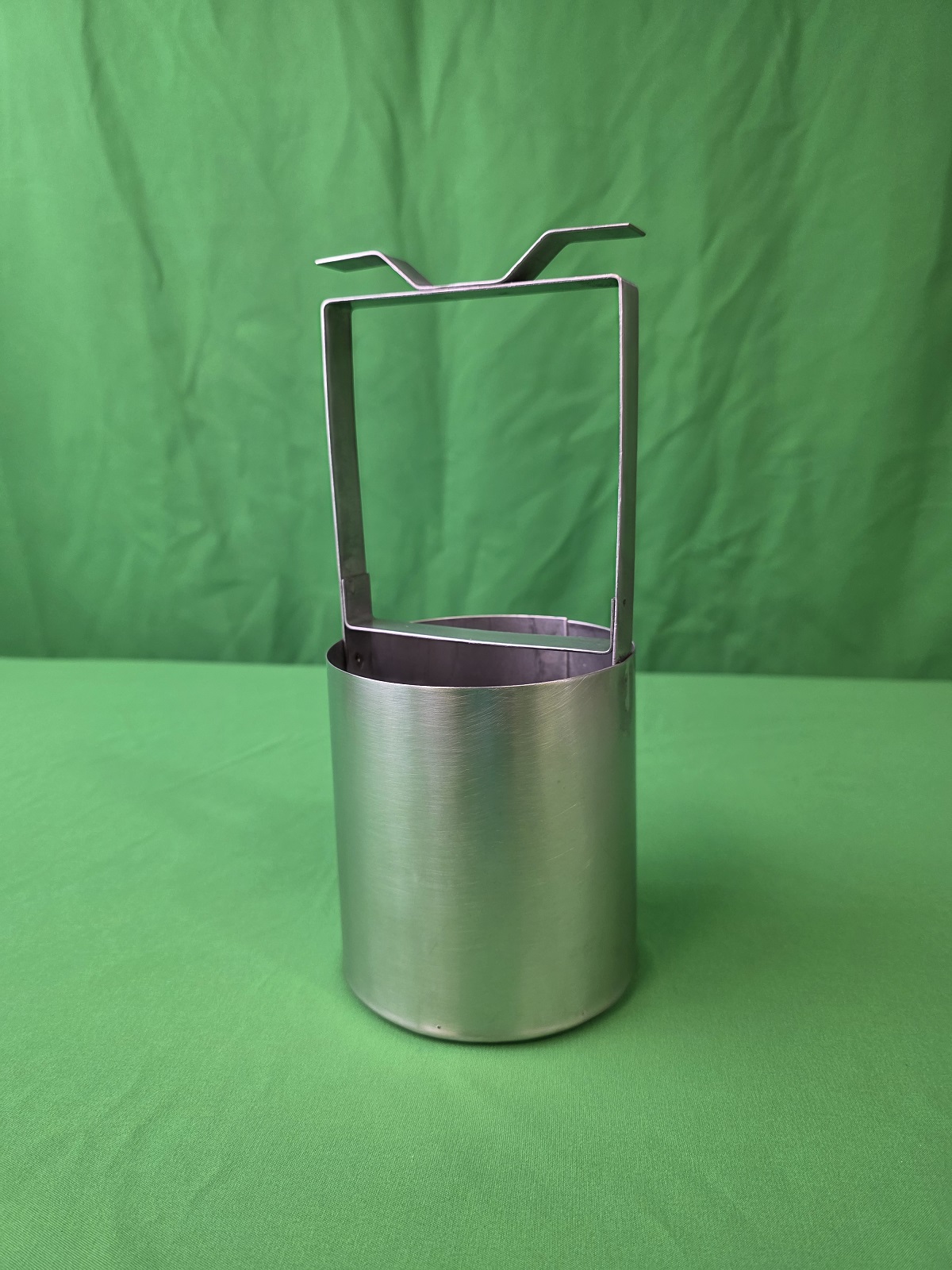

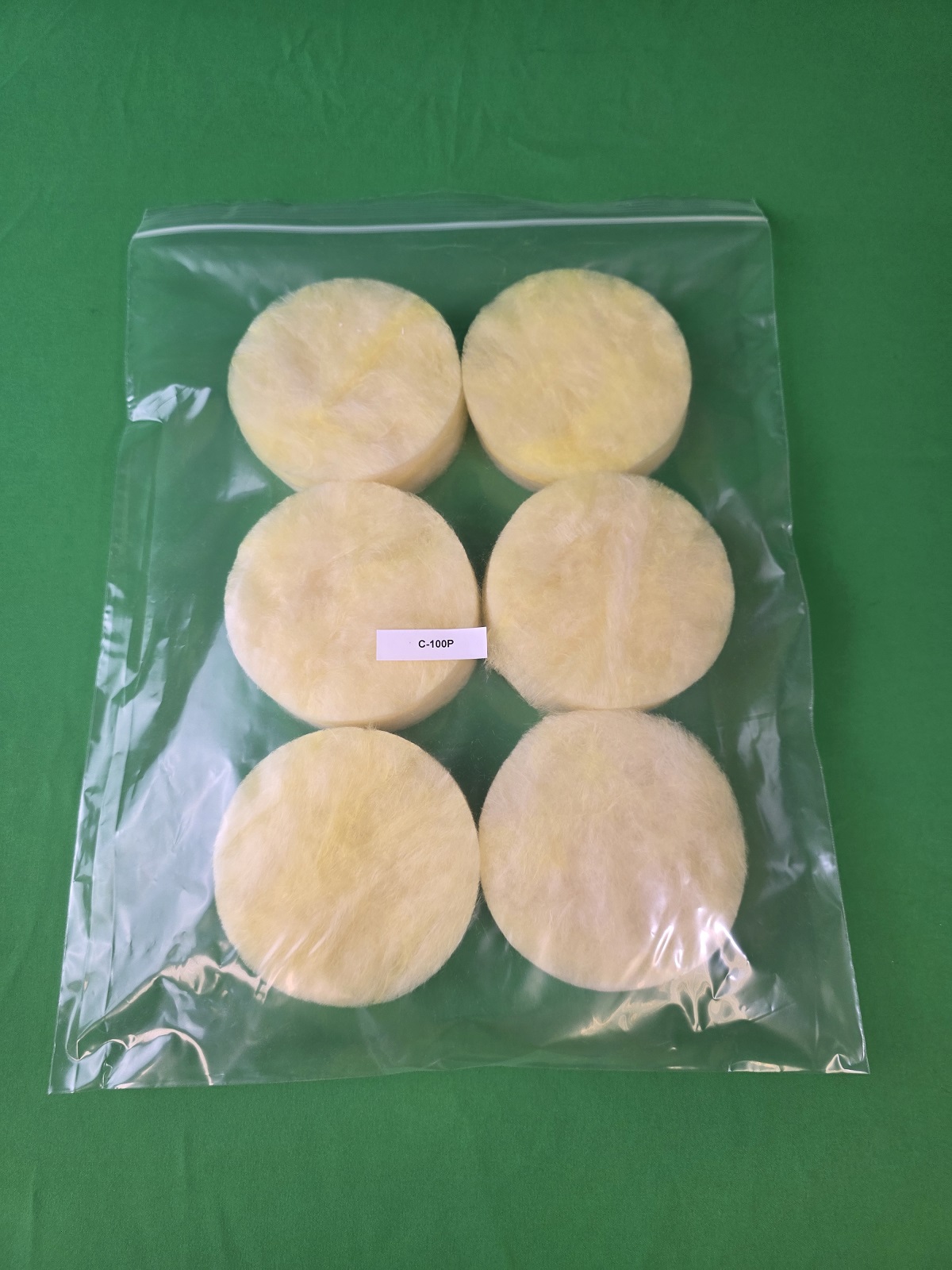

C-282

Chlorine Gas Filter

Product Downloads

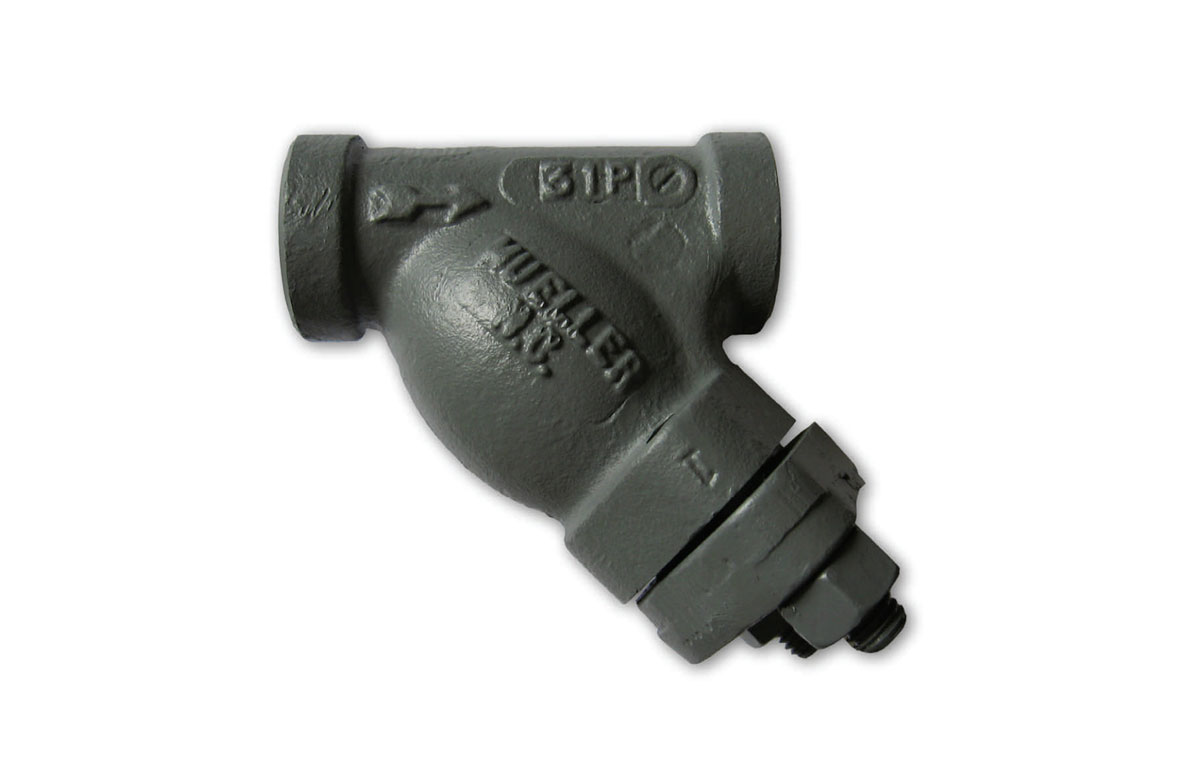

RH-6786

Manifold Y-strainer

Information & Features

  • Available in 3/4″ NPT
  • Monel Screen

Product Downloads

AH-1461

Manifold Union

Information & Features

  • Available in 3/4″ NPT and 1″ NPT

Product Downloads

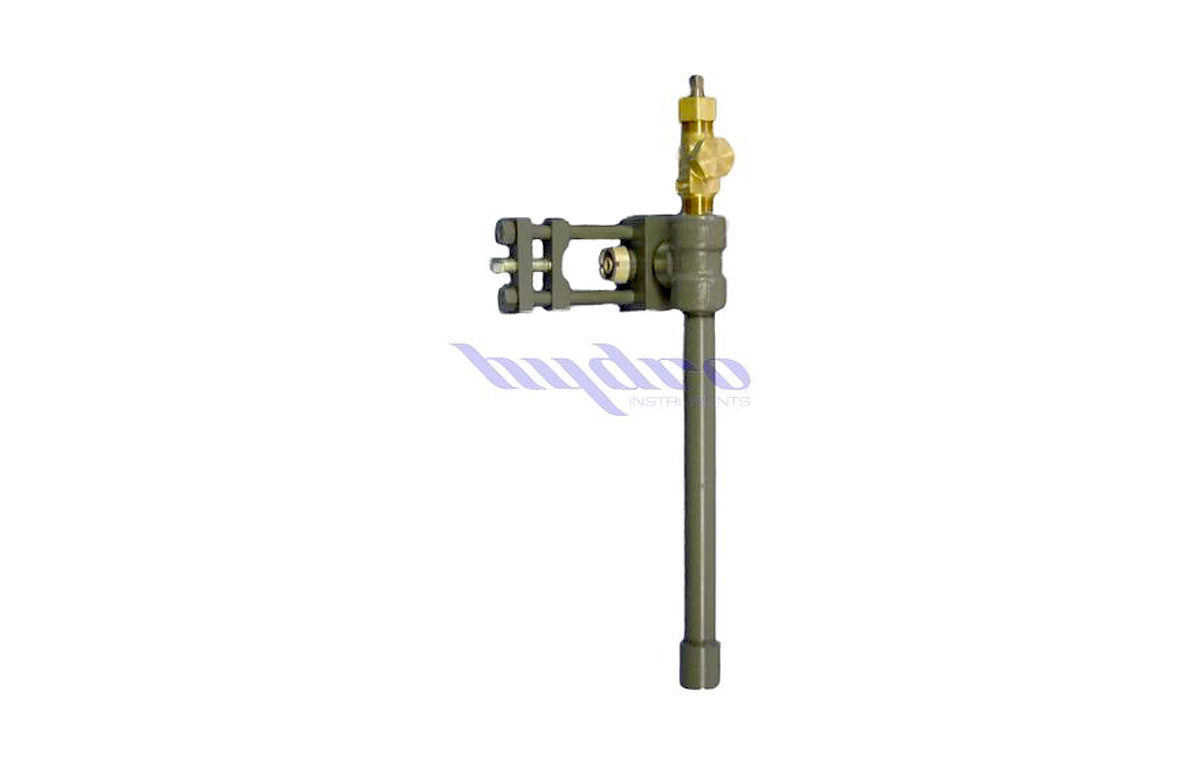

TUY-1

Ton Container Mounting Adapter

Information & Features

  • With 25 watt heater, drip leg, and header valve
  • For conversion of cylinder mount vacuum regulators to direct Ton mounting
  • Compatible with any brand of Chlorine or Sulfur Dioxide vacuum regulator
