RPH-260 Residual Analyzer

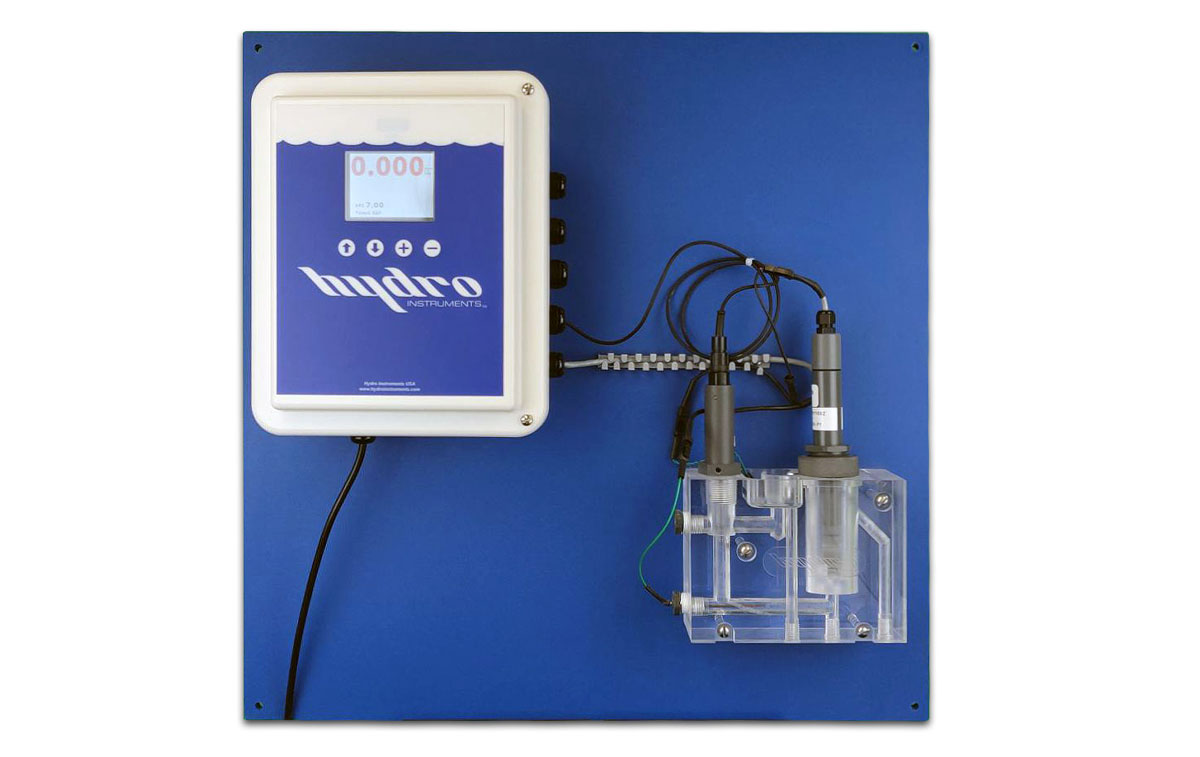

RPH-260 Probe-Type Residual Analyzer

RPH-260 Probe-Type Residual Analyzer With One or Two Disinfectant Probes

Information and Main Features of the RPH-260 Residual Analyzer

  • Amperometric Probe-Type Residual Analyzer
  • Reagentless
  • Probe-type residual measurement of:
    • Free Chlorine
    • Total Chlorine
    • Chlorine Dioxide
    • Chlorite
    • Ozone
    • Hydrogen Peroxide
    • Peracetic Acid
    • Bromine
  • Graphical color display (320 x 240 pixels)
  • Transparent acrylic flow cell
  • Simple Calibration & Maintenance
  • Available Range (Free Cl2): 0-0.5, 0-2, 0-5, 0-10, 0-20, & 0-200 PPM
  • Available Range (Total Cl2): 0-0.5, 0-2, 0-5, 0-10, 0-20 PPM
  • Included Standard:
    • Temperature compensation
    • Four (4) programmable 4-20 mA outputs
    • Four (4) programmable alarm relays
    • RS485 Modbus communication
    • Automatic pH compensation software
    • Two independent PID control loops for Set Point Control of Compound Loop Control
  • Available Options:
    • Second disinfectant probe w/ flow cell
    • pH electrode(s)
    • ORP electrode(s)
    • Data logger
    • Sample water flow switch
  • NEMA4X (IP66) rated controller
  • 100-250 VAC (50-60 Hz)
  • 1 Amp, 24 Watts max.
  • Profibus communication can optionally be supported
Product Downloads
Related Images
RPH-260 Residual Analyzer for Free Chlorine, Total Chlorine, and Other Probe Types

Our RPH-260 probe-type residual analyzers are highly effective at monitoring a wide range of different chemicals and substances, including the following:

  • Free Chlorine
  • Total Chlorine
  • Chlorine Dioxide
  • Chlorite
  • Ozone
  • Hydrogen Peroxide
  • Peracetic Acid
  • Bromine

Regardless of which chemical you need to detect, you can have confidence that our professionally designed and constructed RPH-260 analyzer will serve your needs well.

The Importance of Residual Analyzers

Residual analyzers play a crucial role in chemical monitoring and are widely used in industrial processes. These analyzers are designed to measure the concentration of a specific chemical or substance in a solution, allowing for real-time monitoring of chemical reactions and processes. By continuously monitoring the residual concentration of a chemical, it becomes easier to closely maintain the required concentration range and avoid wastage due to over or under-dosing.

Residual analyzers are vital in guaranteeing regulatory compliance in addition to their role in optimizing industrial processes. Regulatory bodies set limits on the concentration of certain chemicals in wastewater to protect the environment and public health. Residual analyzers can be used to monitor these emissions and ensure that they fall within acceptable limits. Residual analyzers can also be used to identify and gauge the degree of contamination in the case of a spill or leak, enabling quick action and containment measures. Overall, residual analyzers are important instruments for chemical monitoring and aid in ensuring safe and effective operations in a variety of industries.

Buy Quality RPH-260 Residual Analyzers Today

If your organization is searching for chemical detection devices, then our RPH-260 residual analyzers will provide you with the quality you’re looking for. Hydro Instruments has years of experience developing and supplying globally-recognized products, meaning that customers can always depend on our exceptional products.

Our knowledgeable staff will happily answer any questions you may have regarding our RPH-260 probe-type residual analyzer. For more information on our total chlorine residual analyzers and the other high-quality chemical feed and monitoring equipment we offer, contact us today.
